The most popular multi-tooth adhesion cutters and related items in use today are those designed, manufactured and sold by Paul N. Gardner Company. These cutters are available with the following tooth spacing which provides segment shading with the indicated area:

Distance between teeth mm	Segment area Square mm
1.00	1.00
1.50	2.25
2.00	4.00
3.00	9.00

The variable spacing multi-tooth cutter has 14 teeth providing 13 tooth spaces ranging from 0.46mm to 2.58mm.

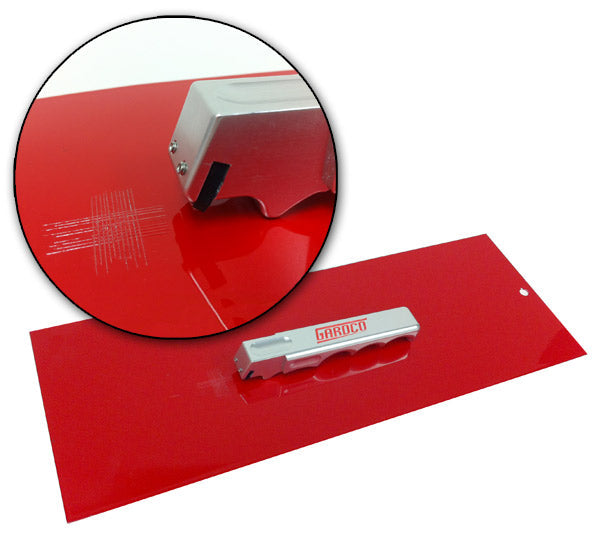

This spacing provides segment areas ranging from 0.21 square mm to 6.66 square mm. A sketch of the cutter is shown below on the left and a pattern of the crosshatch cuts obtained is shown on the right.

SEGMENT AREA TABLE
The following table shows the segment area in square mm for each of the segments in the multi-tooth hatch pattern with variable spacing.
Tooth spacing in mm	0.46	0.53	0.61	0.71	0.82	0.94	1.09	1.26	1.45	1.68	1.94	2.24	2.58
Segment area in Square mm	1.19	1.37	1.57	1.83	2.12	2.43	2.81	3.25	3.74	4.34	5.01	5.78	6.66
	1.03	1.18	1.36	1.59	1.83	2.10	2.44	2.82	3.24	3.75	4.34	5.01	5.77
	0.89	1.03	1.18	1.37	1.59	1.82	2.11	2.44	2.81	3.25	3.75	4.33	4.99
	0.77	0.89	1.02	1.19	1.37	1.58	1.83	2.11	2.43	2.82	3.25	3.75	4.32
	0.67	0.77	0.89	1.03	1.19	1.36	1.58	1.83	2.11	2.44	2.82	3.25	3.75
	0.58	0.67	0.77	0.89	1.03	1.18	1.37	1.58	1.82	2.11	2.44	2.82	3.24
	0.50	0.58	0.66	0.77	0.89	1.02	1.19	1.37	1.58	1.83	2.11	2.44	2.81
	0.43	0.50	0.58	0.67	0.77	0.89	1.03	1.19	1.37	1.58	1.83	2.11	2.43
	0.38	0.43	0.50	0.58	0.67	0.77	0.89	1.03	1.18	1.37	1.58	1.83	2.11
	0.33	0.37	0.43	0.50	0.58	0.66	0.77	0.89	1.03	1.19	1.37	1.58	1.82
	0.29	0.33	0.38	0.44	0.51	0.58	0.68	0.78	0.90	1.04	1.20	1.39	1.60
	0.23	0.27	0.31	0.36	0.41	0.47	0.55	0.63	0.73	0.85	0.98	1.13	1.30
	0.21	0.24	0.28	0.33	0.38	0.43	0.50	0.58	0.67	0.77	0.89	1.03	1.18

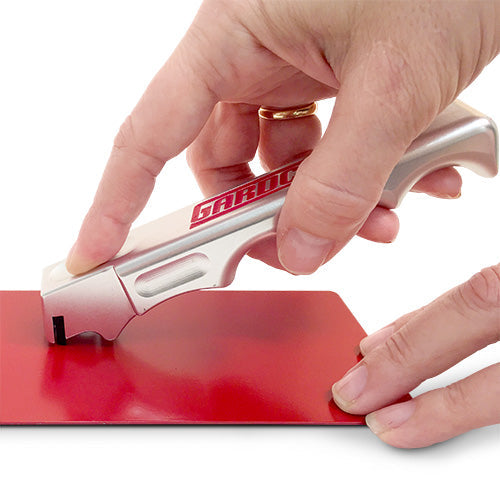

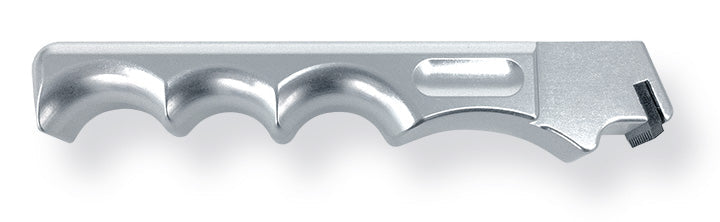

Very thick blade (3.0mm spacing) 6 teeth
